Transporting oversize or overweight loads is a precision-driven task where every inch and pound matters. Accurate measurement of axle spacing and overall vehicle length is critical to securing permits, avoiding hefty fines, and ensuring compliance with U.S. regulations.
These measurements determine whether your load meets federal and state standards or requires special permits. We’ve created a clear, beginner-friendly guide to help you master this process, avoid errors, and streamline your operations. Read on, follow the steps, and use our tips to transport with confidence!
Precise axle spacing and vehicle length measurements are essential for compliance with the Federal Bridge Formula and state-specific regulations. These figures ensure your load doesn’t damage roads or bridges, maintains vehicle stability, and meets permit requirements.
Errors, even as small as an inch, can lead to fines ranging from $100 to $10,000+, permit denials, or safety risks like bridge damage or vehicle tipping. Accurate data also speeds up permit processing (15 minutes to 24+ hours, per omnipermits.com) and reduces the chance of DOT inspections or route delays.
Tip. Always double-check measurements and keep records handy to avoid disputes with inspectors.
Before starting, review our guide on How to read the route in a permit for oversized cargo for context on how measurements tie into permits.
Choose a Location. Park the vehicle on a flat, level surface to ensure accuracy. Uneven ground can skew results.
Select Tools. Use a tape measure or laser distance meter. Lasers are faster and more precise for long combinations, but a tape measure works for shorter setups.
Clear Obstacles. Ensure axles (often called “wings”) are visible. Remove dirt, debris, or cargo blocking access to measurement points.
Tip. Take a flashlight for low-light conditions or to inspect axles under the vehicle.
Start Point. Locate the center of the first axle (typically the steer axle of the tractor). Measure to the center of the second axle and record in feet (e.g., 12 ft).
Continue Sequentially. Measure from the center of the second axle to the third, then third to fourth, and so on until the last axle.
For Complex Combinations (>8 Axles). Measure each axle pair individually. Also measure groups like tandems (2 axles) or tridems (3 axles) to verify compliance with the Federal Bridge Formula.
Why It Matters. Axle spacing (L) and number of axles (N) are used in the Federal Bridge Formula (W = 500 × [(L × N) / (N - 1) + 12N + 36]) to calculate allowable weight, protecting roads and bridges.
Tip. Photograph each axle pair and note measurements in a log or ELD for permit applications and DOT checks.

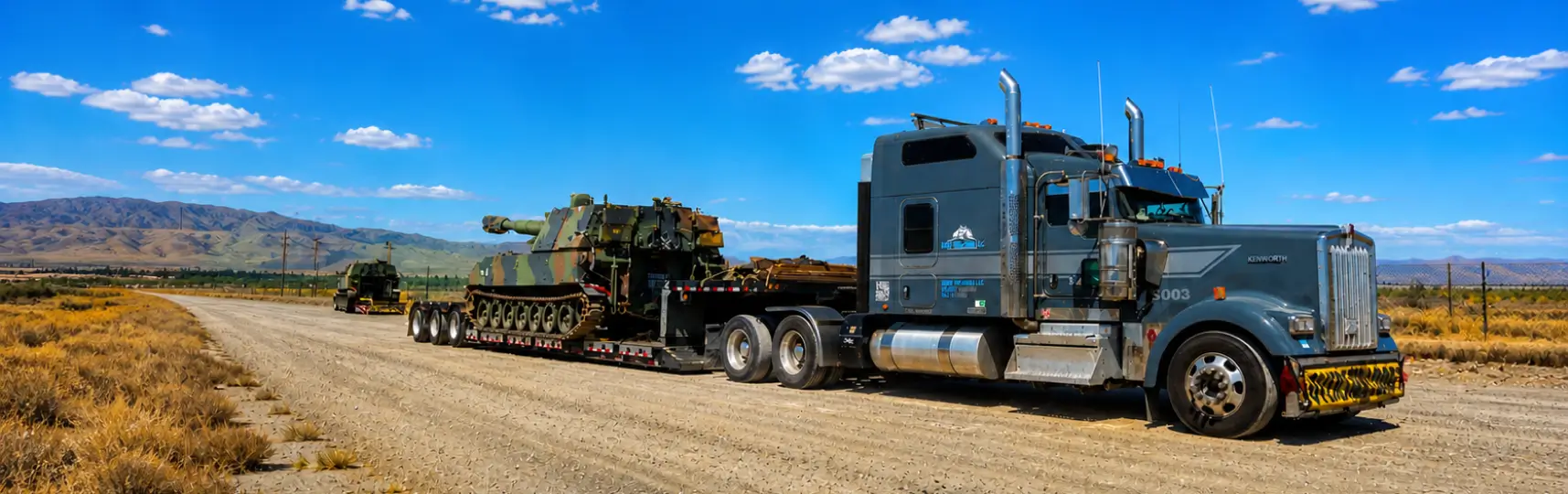

Outer Bridge. Measure from the center of the first axle to the center of the last axle (outer bridge). This is critical for long combinations (>75 ft), which often require oversize permits.
Total Vehicle Length. Include any overhang (front or rear) in the total length for permit accuracy. For example, a 53-ft trailer with a 5-ft rear overhang results in a 58-ft total length.
Tip. For loads exceeding 75 ft, prepare for additional requirements like pilot cars or route surveys.
State Regulations. Verify axle spacing meets state rules. For instance, California requires a minimum tandem spacing of 4 ft, with a maximum width (including tires) of 108 inches.
Overhang Limits. Measure front and rear overhang (cargo extending beyond the vehicle). Without a permit, limits are typically 3 ft front and 4 ft rear. In California, rear overhang >10 ft requires a permit.
Bridge Formula Compliance. Ensure axle group weights align with the formula to avoid overweight permits.
Tip. For significant overhang, attach red/orange flags (18x18 inches) and “OVERSIZE LOAD” signs for safety and compliance.
Avoid Fines. Incorrect axle spacing or length can violate state or federal limits, leading to fines from $100 to $10,000+.
Road Safety. Proper measurements prevent bridge damage, ensure vehicle stability, and reduce accident risks.
Efficient Permitting. Accurate data speeds up permit approval (15 min–24+ hr) and minimizes rejections or manual reviews.
DOT Compliance. Inspectors often verify measurements on-site; errors can result in delays or vehicle impoundment.
Tip. Use certified scales (e.g., CAT scales) after measuring to confirm axle and gross weights match permit data.
Use Certified Scales. Weigh each axle and axle group on CAT scales or state-certified scales to confirm compliance with the Bridge Formula.
Check Inner Bridges. For >8 axle combinations, measure intermediate axle groups (inner bridges) to ensure no group exceeds allowable weight.
Document Everything. Take photos or videos of measurements and store records in an ELD or log for inspections.
Study State Rules. Regulations vary; California is stricter on tire width, while Pennsylvania focuses on axle weight. Check DOT websites.
Use Reliable Tools. A laser distance meter is ideal for long combinations; ensure it’s calibrated for accuracy.
Verify Overhang. Measure front/rear overhang and add flags or signs if exceeding 3 ft (front) or 4 ft (rear).
Plan for Escorts. Loads >75 ft or with significant overhang often need pilot cars—arrange via omnipermits.com.
Consult Professionals. If measurements are complex, contact Omni Permits for help with calculations and permits.
Double-Check Data. Recheck axle spacing and length before submitting permit applications to avoid rejections.
Train Your Team. Ensure drivers understand measurement processes and state-specific requirements.
Watch instructional video
Use Apps for Planning. Apps like Hammer or Trucker Path help map routes while considering axle spacing and length restrictions.
Check DOT Websites. Confirm state-specific axle and length limits before measuring to avoid surprises.
Keep Records Accessible. Store measurement photos and scale tickets in the cab for quick DOT inspection access.
Coordinate with Escorts. Share axle spacing and length data with pilot car teams for smoother navigation.
With accurate axle spacing and vehicle length measurements, your oversize load transport will be safe, legal, and efficient. Follow these steps, double-check your data, and hit the road with confidence!
