Transporting oversize loads demands precision, and overhang is a critical detail that can’t be overlooked. Though the term may seem confusing, it’s straightforward once you understand it. Overhang impacts safety, permit requirements, and vehicle maneuverability. This clear guide explains what overhang is, how to measure it, and how to comply with regulations. Read on, apply our tips, and haul without issues!

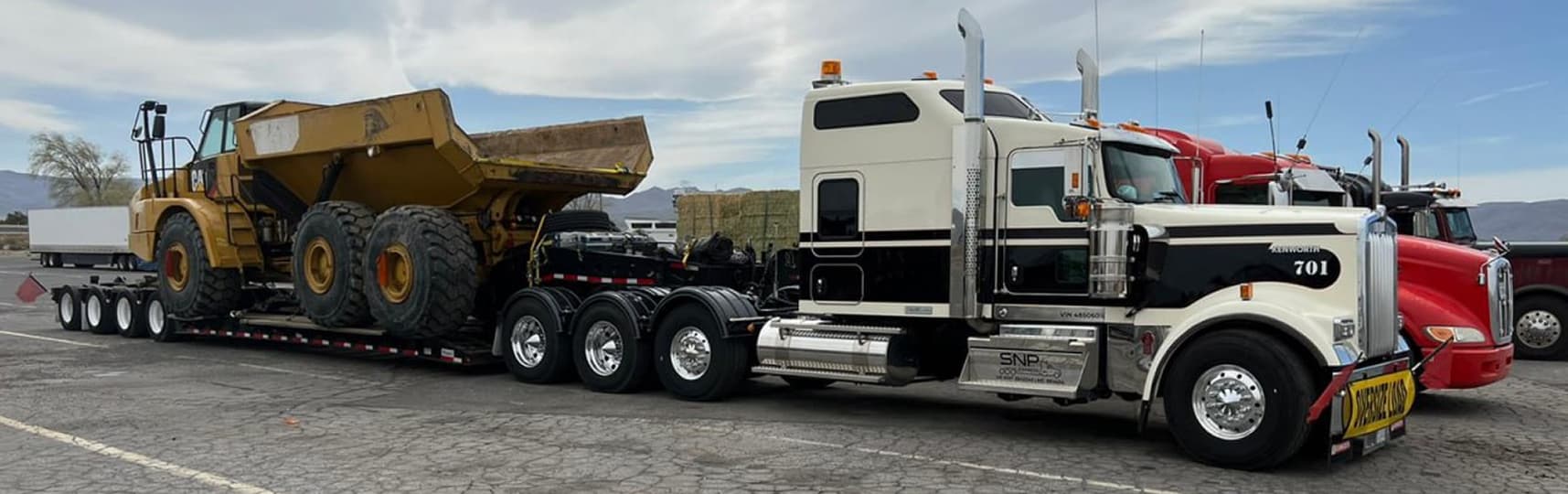

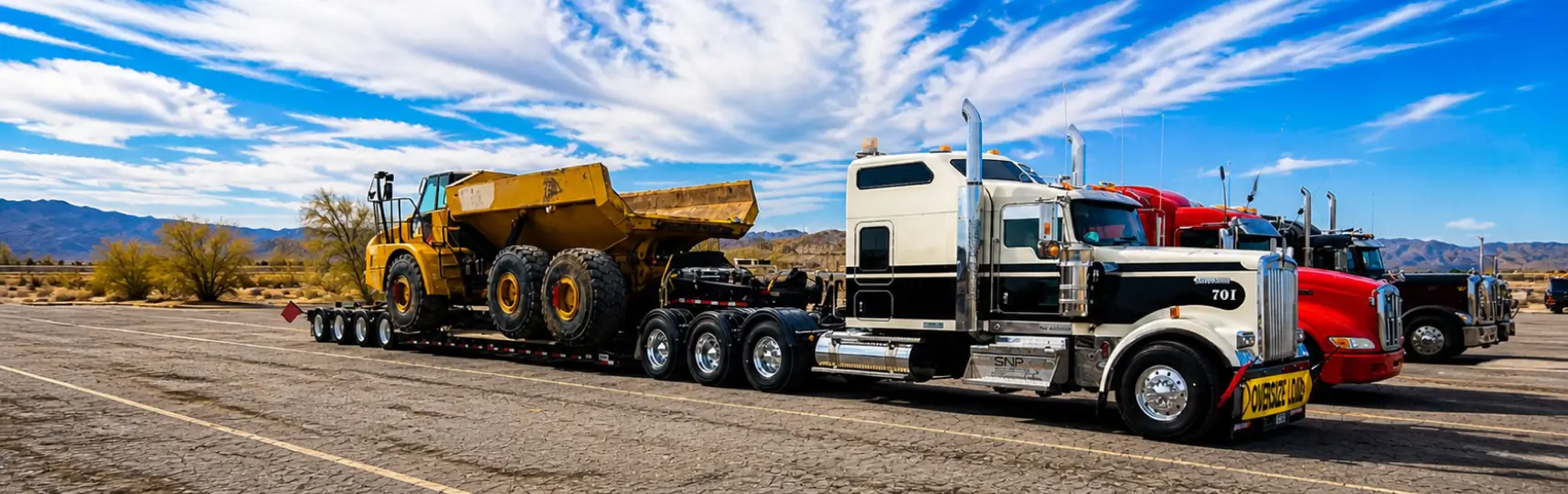

Overhang refers to the portion of a load that extends beyond the edges of a trailer’s platform or truck’s body—front, rear, or sides. It’s measured from the end of the trailer deck (or tractor bumper) to the load’s outermost point. For example, if a load extends 5 feet past the trailer’s rear, that’s the rear overhang.
State Departments of Transportation (DOTs) strictly regulate overhang due to its effects on road safety, turning radius, and infrastructure load. Misjudging overhang can lead to fines ($100–$5,000+), maneuvering challenges, or permit denials. Accurate overhang data ensures proper permit applications through services like omnipermits.com, prevents delays, and supports compliance with the Federal Bridge Formula. For related guidance, see our Guide to completing a permit application through Omni Star.
Tip. Document overhang measurements with photos to streamline permit applications and DOT inspections.
Overhang comes in three forms, each with specific rules:
Rear overhang. The load extends beyond the trailer’s rear. Federal rules allow up to 4 feet (1.2 m) without special measures. Beyond that, use red/orange flags (18×18 inches) by day or red lights (visible at 500 ft/150 m) at night. In states like California or Florida, rear overhang is limited to one-third the trailer’s length (e.g., ~17 feet for a 53-foot trailer).
Front overhang. The load extends past the tractor’s bumper or cab. Typically, 3–5 feet (0.9–1.5 m) is allowed without a permit, provided it doesn’t block headlights or hinder turns. Beyond this, yellow flags or lights are required.
Side overhang. The load extends beyond the trailer’s width on one or both sides. This always requires a permit, plus red flags or yellow lights at the outermost points.
Measure overhang before travel and check state-specific limits, as exceeding by even 1 inch may require a permit.
Tip. Use a laser distance meter for precise measurements, especially for complex loads.
For a 53-foot trailer with a load extending 5 feet rearward, the rear overhang is 5 feet (1.52 m), making the total vehicle length 58 feet (17.68 m) for permit purposes. Measure from the trailer’s deck end to the load’s furthest point.
For front overhang, measure from the tractor’s bumper; for side overhang, from the trailer’s edge to the load’s widest point. Record measurements and include them in the permit application. Photograph the load from multiple angles to document overhang for DOT checks or disputes.
Tip. Save measurements in your ELD or logbook for quick reference during inspections.
Overhang must be clearly marked for road visibility. For rear overhang over 4 feet, use red/orange flags (18×18 inches) by day or red lights (visible at 500 ft/150 m) at night, placed at the load’s ends and corners. Side overhang requires red flags or yellow lights at the widest points.
For front overhang exceeding 3 feet (varies by state), use yellow flags or lights. Secure all markers tightly—loose flags or dim lights can lead to fines. Carry spare flags and lights in the cab for quick replacements.
Tip. Add reflective tape to overhang edges for extra visibility, especially for irregular loads.
Overhang affects multiple aspects of transport:
Maneuverability. Long rear overhang increases turning radius, complicating navigation on narrow roads or in urban areas.
Bridge compliance. Improper weight distribution due to overhang can violate the Federal Bridge Formula (W = 500 × [(L × N) / (N - 1) + 12N + 36]), risking permit denials or fines.
Stability. Excessive overhang can cause load sway, especially in turns or high winds, increasing accident risks.
Inaccurate overhang data in permit applications can lead to rejections, roadside fines, or delays at weigh stations.
Tip. Verify overhang complies with the permit to avoid costly rework or inspections.
Check state regulations. Overhang rules vary—California caps rear overhang at one-third of trailer length, while Texas requires extra lights for >10 feet. Review DOT websites or consult omnipermits.com.
Measure precisely. Use a laser distance meter for large loads; it’s faster and more accurate than a tape measure. Log all data.
Secure the load. Ensure overhanging cargo is firmly fastened to prevent shifting or swaying, reducing accident risks.
Enhance marking. Apply reflective tape to overhang edges for better visibility without violating rules.
Prepare for inspections. DOT officers often measure overhang on-site—keep photos and logs ready for quick verification.
Consult experts. If overhang calculations are unclear, contact Omni Star for permit and compliance guidance.
Plan routes. Overhang can complicate narrow roads or low bridges—use DOT maps or Trucker Path for planning.
Carry spares. Stock extra flags, lights, and tape to replace damaged markers on the road.
Document thoroughly. Photograph overhang with markers for proof of compliance.
Train your team. Ensure drivers understand overhang rules and permit requirements to avoid errors.
Route planning. Use apps like Hammer or Trucker Path to identify overhang-friendly routes, avoiding low bridges or tight turns.
Documentation. Save overhang photos in your ELD to simplify permit approvals and inspections.
Professional support. Omni Star can assist with overhang-related permit questions, ensuring accurate applications.
With proper overhang measurement and marking, your oversize haul will be safe and legal. Measure accurately, follow regulations, and hit the road confidently!
